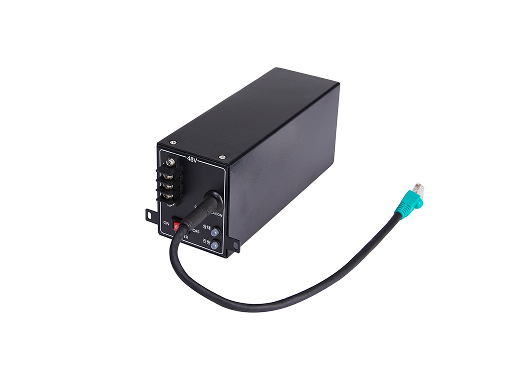

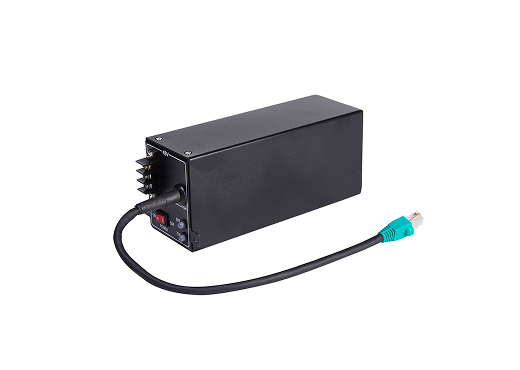

배터리관리시스템(BMS)
Battery Management System (BMS)
제품 사양
| Item | Specification | |
|---|---|---|
| Battery Type | Lithium Iron Phosphate Secondary Battery (15s1p) | |
| Charging Voltage | 52.5V | |
| Rated Voltage | 48V | |
| Discharge Voltage | 40.5V | |
| Rated Capacity | 1,500mAh | |
| Rated Charging | 500mA (0.33c) |
| Maximum Charging | 1,500mA (1.0c) | |
| Discharging | Maximum Discharging | 3A (2.0c) |
| Operating Temperature | Charging | 0℃ ~ 60℃ |
| Discharging | -30℃ ~ 70℃ | |
| Storage Temperature | -10℃ ~ 45℃ | |
| Protection | Cell Overvoltage Protection (OVP) | 3.6V |
| Cell Overvoltage Release | 3.4V | |
| Cell Undervoltage Protection (LVP) | 2.7V | |
| Cell Undervoltage Release | 2.9V | |
| Overload | >5A, 1.28sec | |
| Short Circuit | >20A, 400usec | |
| Balance | >20mV | |
| Power Consumption | <1.3W | |
| Standby Current (When Power Off) | <60uA | |
| Communication | RS-485 | |
| Physical Dimensions / Appearance | 60*75*78mm(W*T*L) | |
