서지보호기

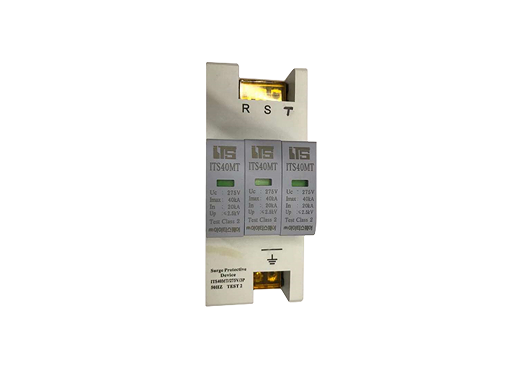

Surge Protector
제품 사양
| Model | IST40MT |
|---|---|
| Uc | 275V |
| Up | 2.5kV |
| L1-L3 In(8/20) | 20kA |
| L1-L3 Imax(8/20) | 40kA |
| Size | 55.8*130*69mm |
| tA | L1-L3:<25ns,PE:<100ns |
| Max backup protective fuse | 40A |
| Authentication | Test report |
| Protection level | IP20 |
| Nomal working temperature | -40℃ ~ 85℃ |
